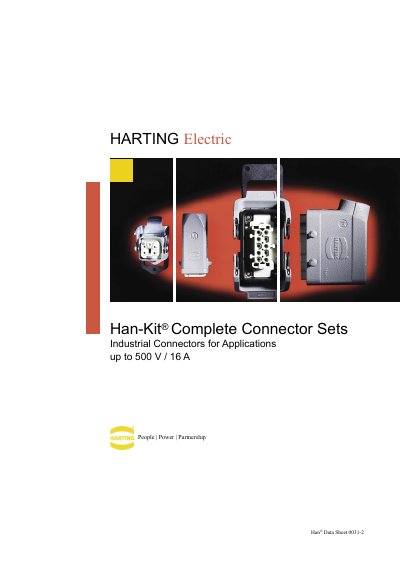

Han-Kit® is HARTING's complete connector sets for applications up to 500 V / 16 A. The kit includes connectors, wiring boxes, terminals, glands and other accessories.
The Han‑Kit series from HARTING offers complete connector kits for industrial applications up to 500 V/16 A. Each kit includes a hood, bulkhead housing, male and female inserts, cable gland and coding options to prevent mis‑mating.
The data sheet lists the various versions (metal, plastic, aluminium) with their rated current (10 A), voltage (230/400 V), impulse voltage (4 kV), IP 67 protection, M20 cable gland size and material details such as die‑cast zinc alloy or plastic. Approvals include UL, CSA and SEV, and the products comply with DIN EN standards.
| Rated current | 10 A |
|---|---|
| Rated voltage | 230/400 V |
| Impulse voltage | 4 kV |
| Cable gland size | M20 |
| Material (metal version) | Die cast zinc alloy |
| Approvals | UL, CSA, SEV |
| Dimensions (housing) | 22 × 22 mm |
The connectors are rated for up to 10 A continuous current.
A M20 size cable gland is used.
