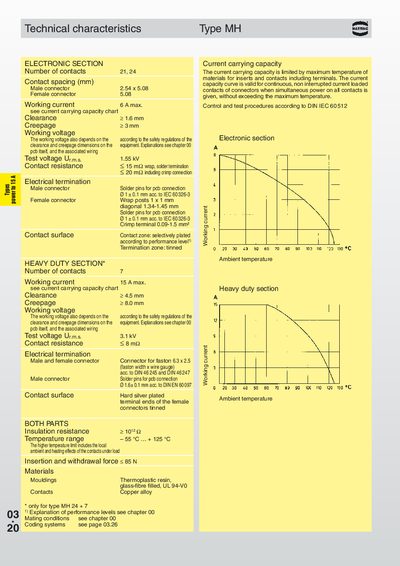

This document provides the technical characteristics of the HARTING Type MH connector. It lists electrical parameters such as current carrying capacity, working voltage, contact resistance, and insulation resistance, as well as mechanical data like contact spacing, clearance, and creepage distances.
Both the standard electronic section and the heavy‑duty section are described, including their respective maximum currents, voltage ratings, temperature ranges, and material specifications for contacts and housing.
| Number of contacts (electronic) | 21, 24 |
|---|---|
| Contact spacing (male) | 2.54 x 5.08 mm |
| Contact spacing (female) | 5.08 mm |
| Working current (electronic) | 6 A max |
| Clearance (electronic) | 216 mm |
| Creepage (electronic) | > 3 mm |
| Working current (heavy duty) | 15 A max |
| Clearance (heavy duty) | 245 mm |
| Creepage (heavy duty) | > 8.0 mm |
| Temperature range | -85 °C to +125 °C |
| Insertion/withdrawal force | < 85 N |
| Housing material | Thermoplastic resin, glass‑fibre filled, UL 94‑VO |
| Contact material | Copper alloy |
