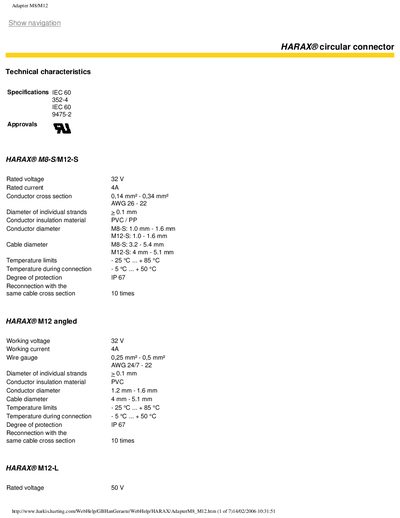

This document describes the technical characteristics and specifications of the HARAX® circular connector. It includes information on the rated voltage, rated current, conductor cross section, conductor insulation material, etc. for the M8-S/M12-S type; as well as the working voltage, working current, conductor cross section, conductor insulation material, etc. for the M12 angled type and M12-L type. Additionally, it provides information on temperature limits, degree of protection, and reconnection times.
The manual provides technical characteristics, ratings and step‑by‑step assembly instructions for the HARAX® M8‑S, M12 angled and M12‑L circular connector adapters. It includes voltage and current limits, conductor specifications, temperature ranges and protection ratings.
Detailed diagrams show derating curves, HF properties and reconnection procedures, while the assembly sections describe cable stripping, element insertion and nut tightening for both unshielded and shielded versions.
| Conductor cross section | 0.14–0.34 mm² |
|---|---|
| Wire gauge | AWG 26–22 |
| Cable diameter (M8‑S) | 1.0–1.6 mm |
| Cable diameter (M12‑S) | 4.0–5.1 mm |
| Operating temperature range | -25 °C to +85 °C |
| Maximum reconnection cycles | 10 times |
It can be reconnected up to 10 times.
The connector can operate from –25 °C up to +85 °C.
