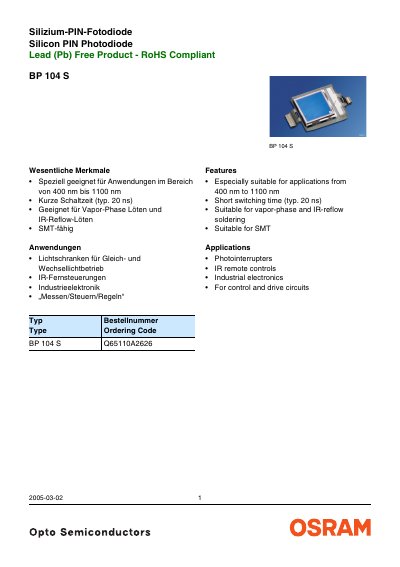

BP 104 S is a silicon PIN photodiode, especially suitable for applications from 400 nm to 1100 nm. It has a short switching time and is suitable for SMT applications.
The BP104S is a silicon PIN photodiode designed for applications from 400 nm to 1100 nm with a short switching time of about 20 ns. It is suitable for vapor‑phase and IR‑reflow soldering and is SMT‑compatible, making it ideal for photointerrupters, IR remote controls, and industrial electronics.
The datasheet lists maximum ratings such as a reverse voltage of 20 V and a total power dissipation of 150 mW, along with detailed electrical parameters, package outlines, and JEDEC Level 4 soldering profiles. Legal and packaging information is also included. This manual is written in German.
