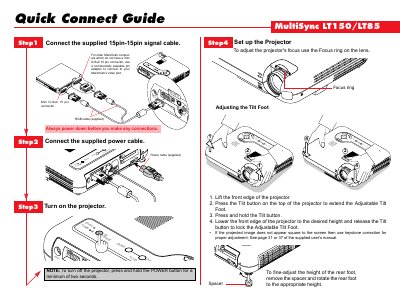

This document is a Quick Connect Guide for MultiSync LT150/LT85 projectors. The document provides instructions on how to connect the projector using the supplied signal cable and power cable, as well as how to adjust the focus and tilt angle of the projector.
This manual begins with safety warnings, handling precautions, and cleaning instructions to protect the projector and the user. It explains how to install the unit on a flat surface or ceiling, how to connect power and video sources, and how to use the remote control and optional laser pointer.
The document then covers basic operation, menu navigation, image adjustments, lamp replacement, troubleshooting of common error messages, and technical specifications such as input voltage, lamp power, supported resolutions and video formats. It also includes a table of PC command codes for advanced control. This manual is written in French.
| Lamp power | 130 W |
|---|---|
| Input voltage | 100‑120 V or 200‑240 V, 50/60 Hz |
| Native resolution | UXGA (1600 × 1200) |
| Lamp life recommendation | Replace after ~1000 hours |
| Supported video signals | VGA, S‑VGA, XGA, SXGA, NTSC, PAL, SECAM, etc. |
No. The projector must be installed by a qualified technician to ensure safety and proper mounting.
Replace the lamp as soon as the lamp‑wear indicator lights, and wait at least 90 seconds after turning the lamp off before turning it on again.
Unplug the projector, then clean the housing with a damp cloth; avoid solvents, alcohol, or harsh detergents.
