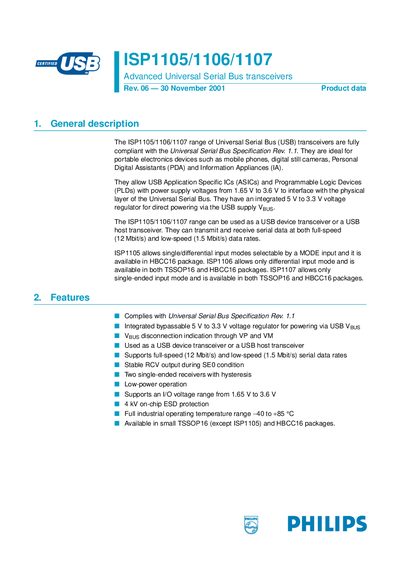

The ISP1105/1106/1107 range of Universal Serial Bus (USB) transceivers are fully compliant with the Universal Serial Bus Specification Rev. 1.1. They are ideal for portable electronics devices such as mobile phones, digital still cameras, Personal Digital Assistants (PDA) and Information Appliances (IA). They allow USB Application Specific ICs (ASICs) and Programmable Logic Devices (PLDs) with power supply voltages from 1.65 V to 3.6 V to interface with the physical layer of the Universal Serial Bus. They have an integrated 5 V to 3.3 V voltage regulator for direct powering via the USB supply VBUS. The ISP1105/1106/1107 range can be used as a USB device transceiver or a USB host transceiver. They can transmit and receive serial data at both full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) data rates.
The ISP1105/1106/1107 family are fully USB‑1.1‑compliant transceivers designed for portable electronics such as mobile phones, digital cameras, PDAs and information appliances. They can operate as either a USB device or host and support both full‑speed (12 Mbit/s) and low‑speed (1.5 Mbit/s) data rates.
The devices include an integrated 5 V‑to‑3.3 V regulator, selectable power‑supply configurations (internal regulator or regulator‑bypass), and a wide I/O voltage range of 1.65 V to 3.6 V. They are offered in TSSOP16 and HBCC16 packages, feature 4 kV on‑chip ESD protection, and operate from –40 °C to +85 °C.
| Integrated voltage regulator | 5 V to 3.3 V bypassable regulator |
|---|---|
| I/O voltage range | 1.65 V to 3.6 V |
| Operating temperature range | ‑40 °C to +85 °C |
| Package options | TSSOP16 (except ISP1105) and HBCC16 |
| On‑chip ESD protection | 4 kV |
