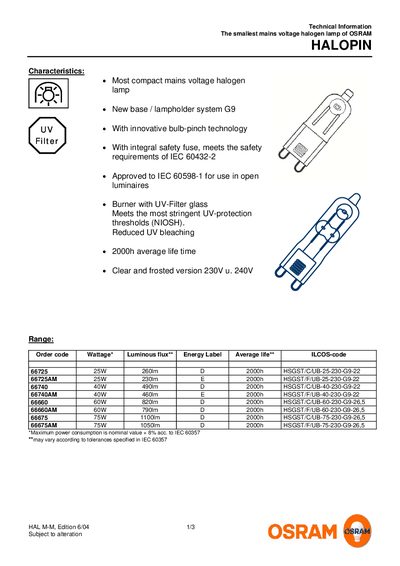

This document describes the features and characteristics of OSRAM HALOPIN, the smallest mains voltage halogen lamp, including the new base/lampholder system G9, innovative bulb-pinch technology, integral safety fuse meeting the safety requirements, approved for use in open luminaires, burner with UV-Filter glass meeting stringent UV-protection thresholds, and an average life time of 2000 hours.
The HALOPIN series is OSRAM's smallest mains‑voltage halogen lamp, featuring a G9 base, UV‑filter glass, an integral safety fuse and innovative bulb‑pinch technology. It complies with IEC 60432‑2 and IEC 60598‑1 for use in open luminaires and meets stringent NIOSH UV‑protection thresholds.
The sheet provides power ratings from 25 W to 75 W, luminous flux between 260 lm and 1100 lm, an average life of 2000 h, and dimensions up to 43 mm overall length. Operating temperature limits, voltage (230 V), colour temperature (2800 K ± 100), and safety information for outdoor and damp‑location use are also listed.
| Power | 25 W – 75 W |
|---|---|
| Luminous flux | 260 lm – 1100 lm |
| Average life | 2000 h |
| Operating voltage | 230 V |
| Colour temperature | 2800 K ± 100 |
| Overall length (max) | 43 mm |
| UV protection | Meets NIOSH thresholds |
HALOPIN lamps are offered in 25 W, 40 W, 60 W and 75 W versions.
The average lifetime is specified as 2000 hours.
They are designed for a mains voltage of 230 V.
The overall length is up to 43 mm and the bulb length up to 38 mm.
