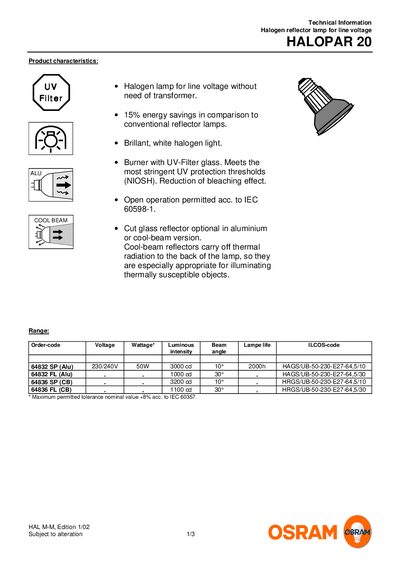

The document describes the features and characteristics of the HALOPAR 20 HAL M-M halogen reflector lamp, including its ability to be used with line voltage without a transformer, 15% energy savings compared to conventional reflector lamps, brilliant white halogen light, burner with UV-Filter glass for UV protection, and the option to choose between aluminum or Cool-beam version of the cut glass reflector.
The HALOPAR 20 is a halogen reflector lamp designed for line voltage operation. It offers 15% energy savings compared to conventional reflector lamps and features a UV‑filter glass that reduces bleaching effects.
The leaflet lists detailed electrical and optical characteristics, mechanical dimensions, temperature limits, and safety guidelines, including required safety distances and disposal instructions.
| Voltage | 230/240 V |
|---|---|
| Luminous intensity | 3000 cd |
| Colour temperature | 2800 K + 100 |
| Overall length | 91.0 mm |
| Reflector diameter | 64.5 mm |
| Maximum permitted temperature | 210 °C |
| Operating temperature (free burning) | 160 °C |
The HALOPAR 20 lamp is rated for line voltage of 230/240 V.
The maximum permitted temperature is 210 °C.
No, the HALOPAR 20 is not suitable for exterior use.
