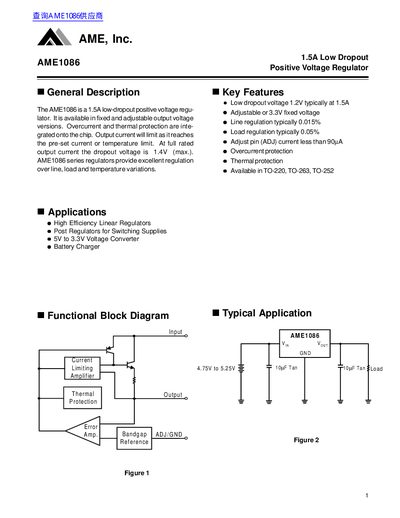

AME, Inc.'s AME1086 is a 1.5A low-dropout positive voltage regulator with features such as low dropout voltage, wide adjustment range, and overcurrent and thermal protection.
The AME1086 is a 1.5 A low‑dropout positive voltage regulator available in fixed and adjustable output versions. It integrates over‑current and thermal protection that limit output current and junction temperature.
The device is supplied in TO‑220, TO‑263 and TO‑252 packages and includes specifications such as a typical dropout voltage of 1.2 V, line regulation of 0.015 % and load regulation of 0.05 %.
| Typical dropout voltage | 1.2 V (typical at 1.5 A) |
|---|---|
| Maximum output current | 1.5 A |
| Line regulation | 0.015 % (typical) |
| Load regulation | 0.05 % (typical) |
| Adjust pin (ADJ) current | < 90 µA |
| Protection features | Over‑current and thermal protection |
| Package options | TO‑220, TO‑263, TO‑252 |
The typical dropout voltage is 1.2 V when delivering 1.5 A.
The regulator includes both over‑current and thermal protection circuits.
It is available in TO‑220, TO‑263 and TO‑252 packages.
Line regulation is typically 0.015 % under standard test conditions.
