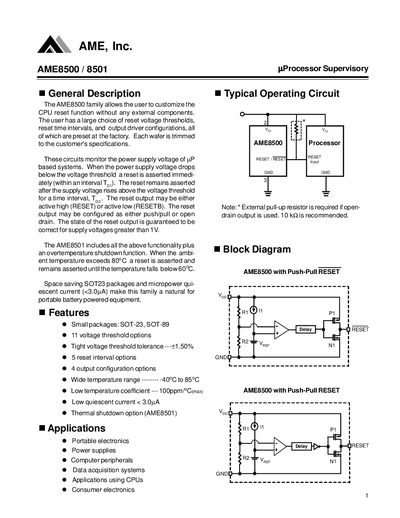

The AME8500/8501 is a processor supervisory chip from AME company, providing a variety of customization options, including voltage threshold, reset interval, output configuration, etc., and also has an overtemperature shutdown function.
The AME8500 family provides a processor supervisory function that lets users customize reset voltage thresholds, reset time intervals, and output driver configurations without external components. The AME8501 adds an over‑temperature shutdown that asserts a reset when ambient temperature exceeds 80 °C and releases it below 60 °C.
Available in small SOT‑23, SOT‑89 and SOT‑25 packages, the devices feature low quiescent current (<3 µA) and operate over a wide temperature range (‑40 °C to +85 °C). Detailed ordering information, pin configurations, and absolute maximum ratings are provided for designers.
| Voltage threshold options | 11 |
|---|---|
| Reset interval options | 5 |
| Output configuration options | 4 |
| Quiescent current | <3.0 µA |
| Recommended supply voltage | 1.6‑5 V |
The quiescent current is less than 3 µA.
The devices are offered in SOT‑23, SOT‑89 and SOT‑25 packages.
