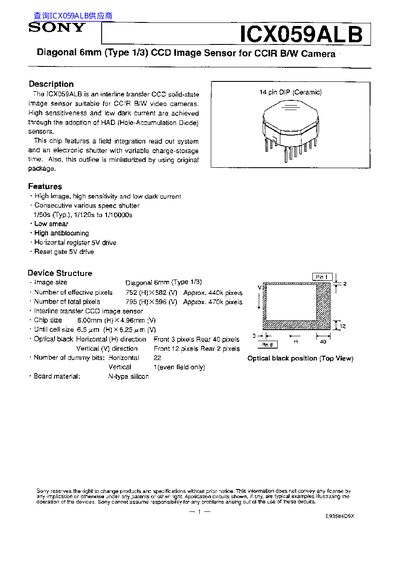

The Sony ICX059ALB is a 6 mm diagonal interline‑transfer CCD image sensor designed for CCIR black‑and‑white video cameras. It features high sensitivity, low dark current, an electronic shutter with variable charge‑storage time, and anti‑blooming capability.
The document lists detailed electrical characteristics, pin assignments, maximum ratings, clock waveforms, and recommended handling procedures to protect the sensor from static discharge, excessive heat, and mechanical shock.
| Sensor diagonal | 6 mm (Type 1/3) |
|---|---|
| Effective pixels | 752 × 582 (≈440 k) |
| Pixel size | 6.5 µm (H) × 6.25 µm (V) |
| Horizontal register drive voltage | 5 V |
| Reset gate drive voltage | 5 V |
| Operating temperature range | -10 °C to +60 °C |
| Storage temperature range | -30 °C to +80 °C |
| Typical output amplifier drain voltage (Voo) | 15.0 V |
| Maximum substrate voltage | +55 V |
Handle the device with bare hands or non‑chargeable gloves, wear conductive shoes, use an earth band, place a conductive mat on the work surface, and keep the sensor in static‑protective packaging.
Do not exceed a package temperature of 80 °C during soldering.
The sensor can operate from –10 °C up to +60 °C.
