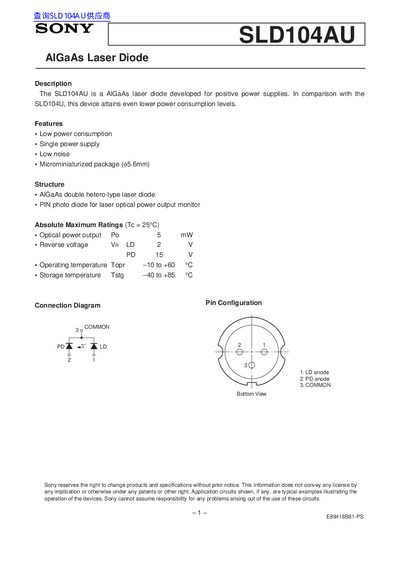

SLD104AU is an AlGaAs laser diode developed by Sony. The device features low power consumption, single power supply, low noise, and microminiaturized package.
The SLD104AU is an AlGaAs laser diode designed for use with a single positive power supply. It offers low power consumption, low noise, and a microminiaturized 5.6 mm package.
Key characteristics include a maximum optical output of 5 mW, reverse voltage of 2 V, operating temperature from –10 °C to +60 °C, and a wavelength range of 760‑800 nm. Electrical and optical parameters such as threshold current, operating current, and differential efficiency are detailed in the datasheet, along with pin configuration and package dimensions.
| Maximum optical power output | 5 mW |
|---|---|
| Reverse voltage (V_E) | 2 V |
| Operating temperature range | -10 °C to +60 °C |
| Wavelength range | 760‑800 nm |
| Threshold current (I_th) minimum | 45 mA |
The device can deliver up to 5 mW of optical power.
It operates from –10 °C to +60 °C.
The reverse voltage rating is 2 V.
It emits in the 760‑800 nm wavelength range.
