The AD6630 is a differential, low noise IF gain block with features such as 24dB gain, 4dB noise figure, easy match to SAW filters, and adjustable output limiter.

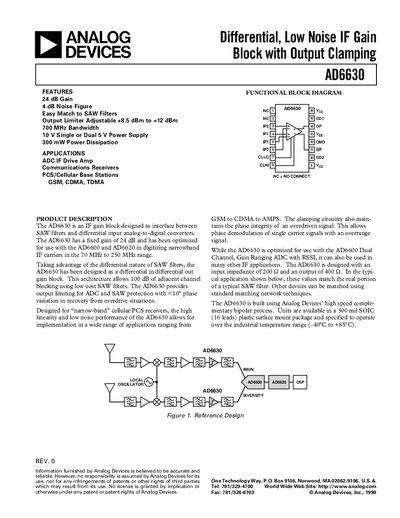

The AD6630 is a differential, low‑noise IF gain block designed to interface SAW filters with ADCs. It provides a fixed 24 dB gain, 4 dB noise figure, and adjustable output limiting from +8.5 dBm to +12 dBm across a 70 MHz to 250 MHz bandwidth.
The device is supplied in a 16‑lead wide‑body SOIC package, operates from a single 10 V supply (8.5‑10.5 V typical), and is rated for –40 °C to +85 °C. Detailed specifications, pin descriptions, and reference designs are included for RF designers.
| Gain @ 70 MHz | 24 dB |
|---|---|
| Gain @ 250 MHz | 23 dB |
| Noise Figure | 4 dB |
| Operating Frequency | 70 MHz – 250 MHz |
| Supply Voltage (single) | 8.5 V – 10.5 V |
| Power Dissipation | 300 mW |
| Input Impedance | 200 Ω |
| Output Impedance | 400 Ω |
| Package | 16‑Lead Wide Body SOIC (R‑16) |
The AD6630 operates from a single supply voltage of 8.5 V to 10.5 V.
The device has a noise figure of 4 dB.
It is rated for ambient temperatures from –40 °C to +85 °C.
The AD6630 is offered in a 16‑lead wide‑body SOIC (R‑16) package.
