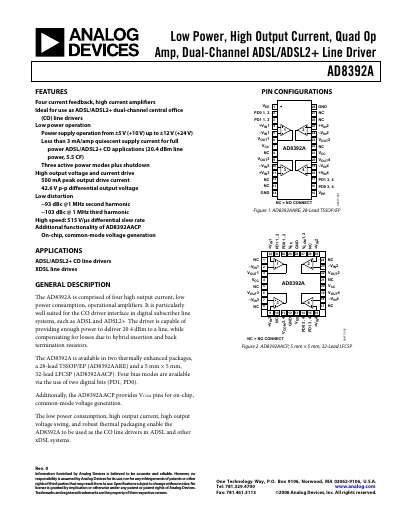

The AD8392A is a low power, high output current, quad op amp designed for use as an ADSL/ADSL2+ line driver. It features four current feedback, high current amplifiers, low power operation, multiple power supply modes, high output voltage and current drive, low distortion, and high speed capabilities.
The AD8392A quad operational amplifier provides up to 500 mA peak output current with low quiescent power, making it suitable for ADSL/ADSL2+ central‑office (CO) line drivers. It operates from dual supplies of ±5 V to ±12 V (or single 10 V‑24 V) and offers a differential output swing of over 40 Vpp.
Key features include four current‑feedback amplifiers, programmable bias modes, on‑chip common‑mode generation, and robust thermal packaging. The device is offered in a 28‑lead TSSOP/EP package (AD8392AARE) and a 32‑lead LFCSP package (AD8392AACP).
| Small Signal Bandwidth | 25‑37 MHz |
|---|---|
| Large Signal Bandwidth | 23‑30 MHz |
| Slew Rate | 515 V/µs |
| Peak Output Current | 500 mA |
| Differential Output Voltage Swing | 41.2‑42.6 V p‑p |
| Dual‑Supply Operating Range | ±5 V to ±12 V |
| Single‑Supply Operating Range | 10 V to 24 V |
| Quiescent Current (PD0,PD1 = 0,0) | 5.8 mA |
The AD8392A can deliver a peak output current of 500 mA.
It operates from ±5 V to ±12 V on dual supplies, or from 10 V to 24 V on a single supply.
The device provides three active bias modes plus a shutdown state, selectable via two digital pins.
The small‑signal bandwidth is specified as 25 MHz to 37 MHz.
