AD8396 is a low power, high output current, dual-port ADSL/ADSL2+ line driver. It features integrated feedback and gain resistors, integrated biasing network, and is ideal for use as an ADSL/ADSL2+ dual-channel Central Office (CO) line driver. It has high output voltage and current drive capabilities.
The AD8396 is a low‑power, high‑output‑current dual‑port ADSL/ADSL2+ line driver designed for central‑office applications. It offers dual‑supply operation from +6 V to +12 V or single‑supply from 12 V to 24 V, with a quiescent current of 10.8 mA in full‑power mode and 1.4 mA in shutdown.

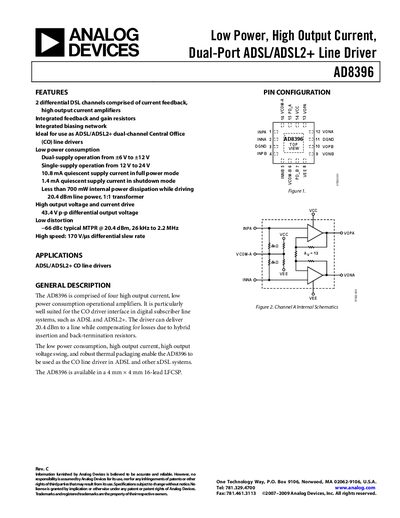

The datasheet includes detailed specifications such as a 170 V/µs slew rate, 43.4 Vp‑p differential output swing, and absolute maximum ratings. Pin configuration, thermal resistance, ordering guide and theory of operation are also provided, along with typical performance graphs for gain, output swing, power consumption and crosstalk.
| Dual Supply Voltage Range | +6 V to +12 V |
|---|---|
| Single Supply Voltage Range | 12 V to 24 V |
| Quiescent Current (Full Power) | 10.8 mA |
| Quiescent Current (Shutdown) | 1.4 mA |
| Differential Output Voltage Swing | 43.4 Vp‑p |
| Slew Rate | 170 V/µs |
| Package Type | 16‑Lead LFCSP |
The typical quiescent current is 10.8 mA.
The absolute maximum supply voltage rating is 264 V.
It is offered in a 16‑lead lead‑frame chip‑scale package (LFCSP).
The differential output voltage swing is 43.4 Vp‑p.
