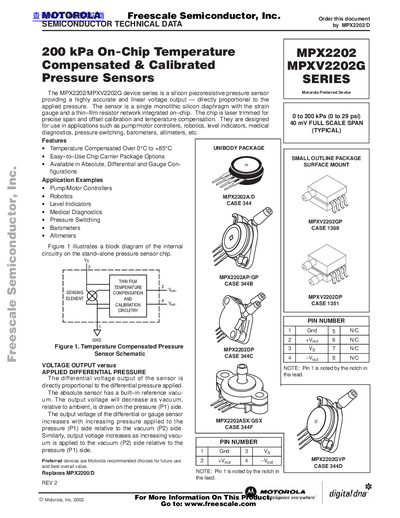

This document introduces the features and characteristics of the MPX2202/MPXV2202G series products, including temperature compensation range, external dimensions, working temperature range, output signal, etc.
The MPX2202/MPXV2202G series are silicon piezoresistive pressure sensors offering linear voltage output proportional to applied pressure. They feature on‑chip temperature compensation, multiple package options, and are available in absolute, differential, and gauge configurations for applications such as pump/motor controllers, robotics, medical diagnostics, and barometers.
The document lists maximum ratings, operating characteristics, mechanical dimensions, and ordering information for both the unibody (through‑hole) and small‑outline surface‑mount packages. Legal disclaimer and contact details for Motorola Semiconductor are also included.
| Pressure Range | 0 – 200 kPa |
|---|---|
| Supply Voltage | 10 – 16 V |
| Full Scale Span | 38.5 – 40 mV (typ) |
| Sensitivity | 0.2 mV/kPa |
| Linearity | ±0.6 % (typ) |
| Response Time | 1.0 ms (10%‑90%) |
| Operating Temperature | -40 to +125 °C |
| Storage Temperature | -40 to +125 °C |
| Input Impedance | 1 kΩ – 2.5 kΩ |
| Output Impedance | 1.4 kΩ – 3 kΩ |
The MPX2202 sensor measures pressures from 0 to 200 kPa.
The device operates with a supply voltage between 10 V and 16 V.
The pressure side (P1) is identified by the silicone‑gel side of the die, marked by a notch on the lead.
