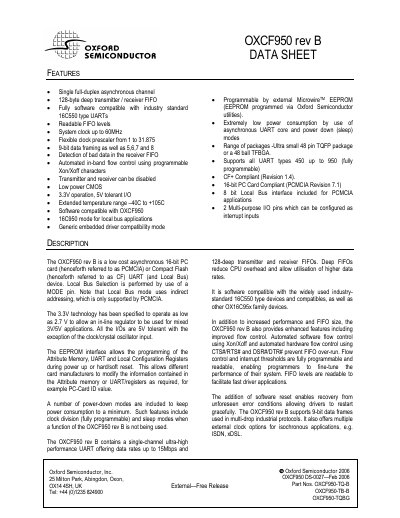

This document introduces the OXCF950 series products from Oxford Semiconductor, which is a single-channel full-duplex asynchronous communication chip. It has a 128-byte deep transmitter/receiver FIFO and is fully compatible with industry standard 16C550 type UARTs. It supports multiple data framing formats, readable FIFO levels, and automated in-band flow control. The product features low power consumption, extended temperature range, and various packaging options.
The OXCF950 rev B is a low‑cost, asynchronous 16‑bit PC‑Card/CF UART driver with extended temperature range and low‑power CMOS operation. It supports 3.3 V operation, 5 V tolerant I/O, and offers 128‑byte deep FIFOs for high‑speed data transfer up to 15 Mbps.
This datasheet provides a block diagram, pin information, configuration and operation details, EEPROM specifications, and electrical characteristics. It also lists differences from the original OXCF950, package options, and contact information for Oxford Semiconductor.
| FIFO depth | 128‑byte deep transmitter/receiver |
|---|---|
| Technology | Low power CMOS |
| Operating voltage | 3.3 V operation, 5 V tolerant I/O |
| Temperature range | -40 °C to +105 °C |
| Supply voltage range | 2.7 V to 3.6 V |
| Maximum data rate | up to 15 Mbps |
It operates from –40 °C to +105 °C.
Both the transmitter and receiver FIFOs are 128 bytes deep.
Yes, the I/O pins are 5 V tolerant.
