Oxford Semiconductor OXUSB954 Development Board Hardware User Guide

This manual introduces the hardware features and usage of the OXUSB954 development board, which can help users quickly get started with the development board.

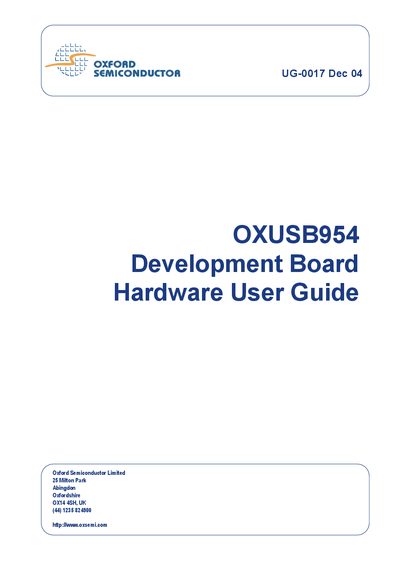

Oxford Semiconductor OXUSB954 Development Board Hardware User Guide - cover page
Brand
Oxford
Category
Other
Document type
User Manual
Language
English
Pages
12
File format
PDF
File size
616 KB
Published
11 April, 2012
Updated
30 September, 2023
MD5 checksum
51637F7081F6BE47BC39AC6F0D1EB670

About this manual

This guide documents the OXUSB954 development board, a USB‑to‑quad serial port bridge that provides full‑speed data transfers and plug‑and‑play connectivity for up to four serial peripherals. It includes board descriptions, connector pinouts, first‑time use instructions, and software installation steps.

The manual also details the required jumper settings for EEPROM code upload, the order code for the development suite (EV‑OXUSB954), and the COM‑port allocation sequence on a host PC.

What's inside

  • Preface
  • Revision Information
  • Ordering Information
  • Development Board Introduction
  • Development Board Features
  • First‑Time Use
  • Uploading Code
  • HD2 Connector Pinout
  • Mictor Header Pinout
  • PC COM Port Configuration

Specifications

Order codeEV-OXUSB954
Device typeUSB to quad serial port bridge

Frequently asked questions

What is the order code for the OXUSB954 development suite?

The order code is EV‑OXUSB954.

Which jumper settings are required to upload code to the EEPROM?

JP1 must not be fitted and JP2 must be fitted when the USB cable is plugged in; after initialization, fit JP1 and remove JP2.

How are the PC COM ports assigned when the board is connected?

The COM ports are allocated in the order P4, PS, P3, P2 for the four serial connectors.
