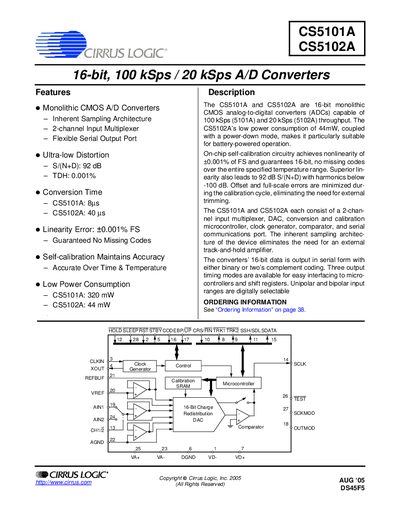

The CS5101A and CS5102A are 16-bit monolithic CMOS analog-to-digital converters (ADCs) capable of 100 kSps (5101A) and 20 kSps (5102A) throughput. The CS5102A’s low power consumption of 44mW, coupled with a power-down mode, makes it particularly suitable for battery-powered operation. On-chip self-calibration circuitry achieves nonlinearity of ±0.001% of FS and guarantees 16-bit, no missing codes over the entire specified temperature range. Superior linearity also leads to 92 dB S/(N+D) with harmonics below -100 dB. Offset and full-scale errors are minimized during the calibration cycle, eliminating the need for external trimming. The CS5101A and CS5102A each consist of a 2-channel input multiplexer, DAC, conversion and calibration microcontroller, clock generator, comparator, and serial communications port. The inherent sampling architecture of the device eliminates the need for an external track-
The CS5101A and CS5102A are 16‑bit monolithic CMOS analog‑to‑digital converters offering 100 kSps (CS5101A) and 20 kSps (CS5102A) throughput. They feature low power consumption, on‑chip self‑calibration and flexible serial output suitable for battery‑powered applications.
The document provides detailed analog and switching characteristics, recommended operating conditions, pin descriptions, package dimensions, and ordering information for both devices, along with environmental and handling guidelines.
| Resolution | 16‑bit |
|---|---|
| Maximum Sampling Rate | 100 kSps (CS5101A), 20 kSps (CS5102A) |
| Input Voltage Range | ±5 V (VA+, VD+ = 5V; VA-, VD- = -5V) |
| Operating Temperature Range | 0 °C to +70 °C (CS5101A), –40 °C to +85 °C (CS5102A) |
| Package | 28‑pin PLCC |
The CS5101A can sample at up to 100 kSps.
The CS5101A is rated from 0 °C to +70 °C, while the CS5102A operates from –40 °C to +85 °C.
Both devices are supplied in a 28‑pin PLCC package.
