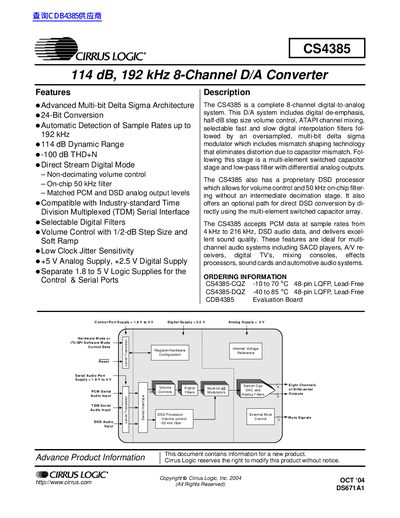

This document contains information for a new product. Cirrus Logic reserves the right to modify this product without notice. The CS4385 is a 114 dB, 192 kHz 8-Channel D/A Converter that features advanced multi-bit delta sigma architecture, 24-bit conversion, automatic detection of sample rates up to 192 kHz, 114 dB dynamic range, -100 dB THD+N, direct stream digital mode, and more.
The CS4385 is a complete 8-channel digital-to-analog system featuring an advanced multi-bit delta sigma architecture. It supports 24-bit conversion with an automatic detection of sample rates up to 192 kHz and delivers an 114 dB dynamic range. The device includes a proprietary DSD processor for volume control and on-chip filtering without an intermediate decimation stage.
| Dynamic Range | 114 dB |
|---|---|
| Total Harmonic Distortion + Noise | -100 dB |
| Sample Rate Support | up to 192 kHz |
| Analog Supply Voltage | +5 V |
| Digital Supply Voltage | +2.5 V |
| Channels | 8-Channel |
Yes, the device accepts DSD audio data and features a proprietary DSD processor for volume control and filtering.
The device automatically detects sample rates up to 192 kHz.
