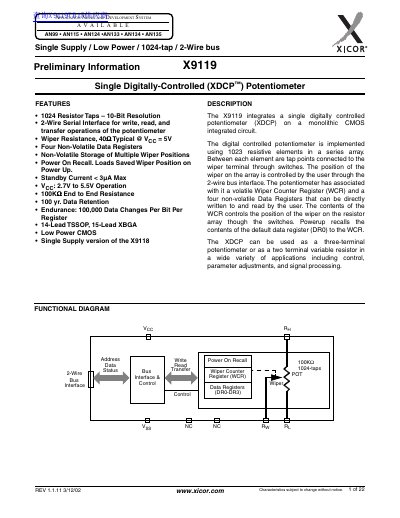

This datasheet provides a detailed description of the features and characteristics of the X9119 Single Digitally-Controlled (XDCP ™) Potentiometer.
The X9119 is a single digitally‑controlled potentiometer (XDCP) that integrates a 1024‑tap resistor array with a 10‑bit resolution. It features a 2‑wire serial interface for reading, writing and transferring wiper positions, four non‑volatile data registers, and power‑on recall of the wiper setting.
Typical applications include programmable voltage references, gain control in amplifiers, volume control, sensor conditioning and other circuits requiring precise resistance adjustment. The device operates from 2.7 V to 5.5 V, draws less than 3 µA in standby, and is supplied in a 14‑lead TSSOP or 15‑lead XBGA package.
| Resistor taps | 1024 |
|---|---|
| Resolution | 10-bit |
| Standby current | < 3 µA |
| Supply voltage | 2.7 V to 5.5 V |
| End‑to‑end resistance | 100 kΩ |
| Wiper resistance | 40 Ω typical @ VCC=5 V |
| Package | 14‑Lead TSSOP, 15‑Lead XBGA |
| Data retention | 100 years |
| Endurance | 100,000 data changes per bit per register |
| Temperature range (commercial) | 0 °C to +70 °C |
The X9119 provides 1024 resistor taps.
The standby current is less than 3 µA.
It operates from 2.7 V to 5.5 V.
