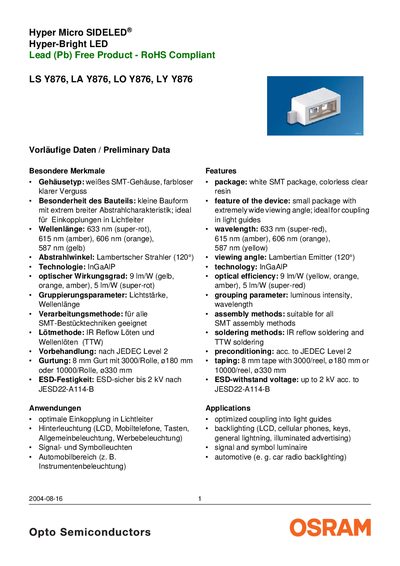

Hyper Micro SIDELED® Hyper-Bright LED is a lead-free product that complies with RoHS standards. It has a white SMT housing and colorless clear resin, and is especially suitable for light guide coupling. The product has 4 wavelengths: 633nm (super-red), 615nm (amber), 606nm (orange) and 587nm (yellow), and a light beam angle of Lambertian Emitter (120°). The product's technology is InGaAlP, and its optical efficiency is 9 lm/W (yellow, orange, amber) and 5 lm/W (super-red). It can be used for all SMT assembly technologies.
The LS Y876 series includes the LS, LA, LO and LY variants, offering small SMT packages with an extremely wide Lambertian viewing angle of 120°. They are optimized for coupling into light guides and are suitable for backlighting, signal and symbol illumination, and automotive applications.
The datasheet provides detailed electrical specifications such as a forward current of 30 mA, reverse voltage up to 12 V, operating temperature range –40 °C to +100 °C, and an optical efficiency of up to 9 Im/W for yellow, orange and amber emissions. Ordering codes, brightness groups, and wavelength groups are also listed. This manual is written in German.
| Optical efficiency | 9 Im/W (yellow, orange, amber), 5 Im/W (super‑red) |
|---|---|
| Operating temperature range | -40 °C to +100 °C |
| Junction temperature (max) | +125 °C |
