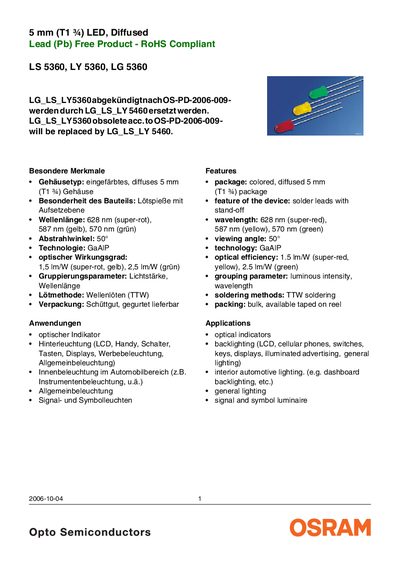

This document is an introduction to LS 5360, LY 5360, LG 5360 5 mm (T1 ¾) LED. The product is GaAlP technology and has super-red, yellow, and green light colors. The light angle is 50° and the luminous efficiency is 1.5 lm/W (super-red, yellow), 2.5 lm/W (green).
The OSRAM LS 5360, LY 5360 and LG 5360 series are 5 mm diffused LEDs available in super‑red, yellow and green wavelengths. The document provides detailed product features, ordering information, electrical ratings and optical characteristics.
Key data include wavelength ranges, viewing angle, optical efficiency, forward current, reverse voltage and temperature limits. Ordering codes for each color and brightness group are listed, along with packaging details and revision history.
| Wavelength (super‑red) | 628 nm |
|---|---|
| Viewing angle | 50° |
| Optical efficiency (super‑red, yellow) | 1.5 Im/W |
| Operating temperature range | –55 °C to +100 °C |
| Maximum junction temperature | +100 °C |
The LS 5360 series is offered in super‑red, yellow and green diffused LEDs.
The LEDs have a viewing angle of 50 degrees.
They are supplied in bulk, available taped on reel, with one brightness and wavelength group per reel.
