The ADS1602 is a high performance analog-to-digital converter with high sampling rate, low power consumption and outstanding anti-noise performance. The product is suitable for various applications such as sonar, vibration analysis and data acquisition.
The ADS1602 is a high‑speed, high‑precision 16‑bit delta‑sigma analog‑to‑digital converter offering a 2.5 MSPS data rate and a 1.23 MHz bandwidth. It features a simple 3‑wire serial interface, on‑chip digital filtering, low power consumption (530 mW at full speed), and a selectable on‑chip voltage reference.

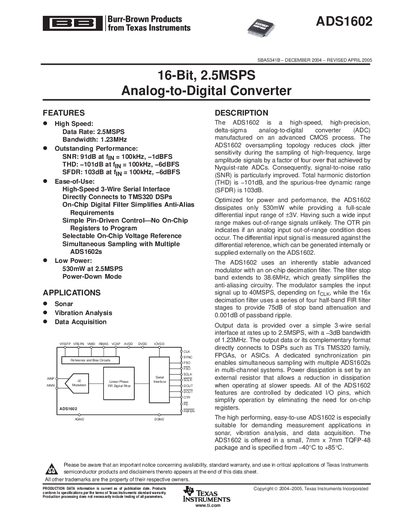

The datasheet provides absolute maximum ratings, detailed electrical characteristics, pin assignments, timing diagrams, mechanical dimensions for the 7 mm × 7 mm TQFP‑48 package, and definitions of key parameters such as SNR, THD, SFDR, and power‑down mode.
| Data Rate | 2.5 MSPS |
|---|---|
| Resolution | 16 Bits |
| Power Dissipation (full speed) | 530 mW |
| Signal‑to‑Noise Ratio (SNR) | 91 dB at 100 kHz, -1 dBFS |
| Total Harmonic Distortion (THD) | -101 dB at 100 kHz, -6 dBFS |
| Spurious‑Free Dynamic Range (SFDR) | 103 dB at 100 kHz, -6 dBFS |
| Package | TQFP‑48, 7 mm × 7 mm |
The ADS1602 can operate at a data rate of up to 2.5 MSPS.
At 2.5 MSPS the device dissipates about 530 mW.
It uses a simple 3‑wire serial interface for data output.
