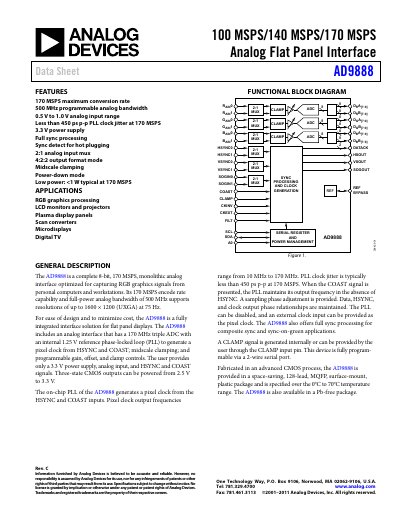

The document provides the datasheet of AD9888 Analog Flat Panel Interface, including maximum conversion rate, programmable analog bandwidth, analog input range, clock jitter, etc.
The AD9888 is a complete 8‑bit, 170 MSPS monolithic analog interface optimized for capturing RGB graphics signals from PCs and workstations. It integrates a triple ADC, on‑chip PLL, programmable gain, offset and clamp controls, and operates from a single 3.3 V supply.
Typical applications include LCD monitors, projectors, plasma displays, scan converters, micro‑displays and digital TV. The datasheet provides functional block diagrams, pin configurations, serial‑port programming details, design guidelines and PCB layout recommendations.
| Resolution | 8 bits |
|---|---|
| Maximum conversion rate | 170 MSPS |
| Analog bandwidth | 500 MHz |
| Supply voltage | 3.3 V |
| Typical power dissipation | <1 W at 170 MSPS |
| Output high voltage | VD‑0.1 V |
| Operating temperature range | ‑25 °C to +85 °C |
The AD9888 can operate at up to 170 MSPS conversion rate.
It offers a programmable analog bandwidth of 500 MHz.
The device runs from a 3.3 V analog power supply.
It is specified for operation from –25 °C to +85 °C.
