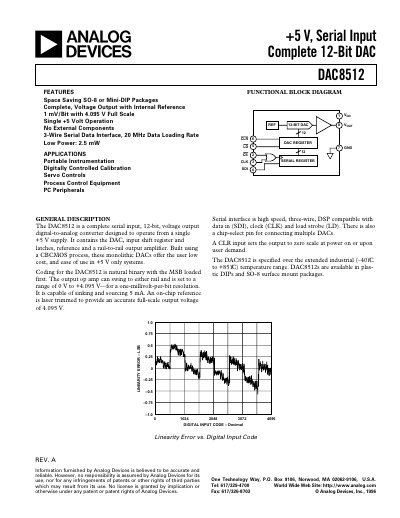

This file introduces the features of DAC8512. DAC8512 is a 12-bit digital-to-analog converter from Analog Devices, which operates on a single +5V supply and offers low power, low cost and ease of use.
The DAC8512 is a complete serial‑input, 12‑bit voltage‑output digital‑to‑analog converter designed for single +5 V operation. It integrates the DAC, shift register, on‑chip reference and a rail‑to‑rail output amplifier, providing 1 mV/LSB resolution over a 0 V‑4.095 V range and can source or sink up to 5 mA.
The device is offered in 8‑pin plastic DIP and SO‑8 surface‑mount packages. It features a high‑speed 3‑wire serial interface (CLK, SDI, LD) with optional chip‑select for multiple devices, and includes ESD protection. Detailed electrical characteristics, timing specifications, and application guidelines are provided for precision instrumentation, calibration, servo control, and other +5 V systems.
| Resolution | 12 bits |
|---|---|
| Supply Voltage | 5 V (±5 %) |
| Output Current | ±5 mA |
| Operating Temperature Range | –40 °C to +85 °C |
The DAC8512 provides 12‑bit resolution.
It operates from a single +5 V supply with a tolerance of ±5 %.
It can source and sink up to 5 mA.
