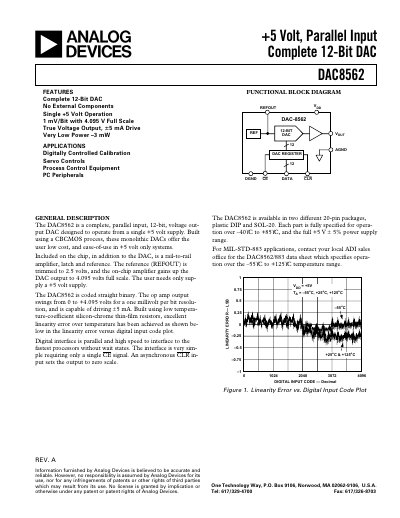

This document is an AD company product manual, which introduces the features and uses of AD's DAC8562 product. The product is a monolithic integrated 12-bit parallel input DAC powered by a single 5V supply.
The DAC8562 is a complete 12‑bit, parallel‑input, voltage‑output digital‑to‑analog converter that operates from a single +5 V supply. It includes an on‑chip rail‑to‑rail amplifier, latch, and reference, delivering a full‑scale output of 4.095 V with a resolution of 1 mV/LSB.
The handbook details electrical characteristics, pin descriptions, timing specifications, and typical performance data such as power dissipation (≈30 mW), output current capability (±5 mA), and supply current versus logic levels. Application guidance covers power‑supply filtering, grounding, and layout considerations for high‑precision use.
| Resolution | 12 Bits |
|---|---|
| Output Current Capability | ±5 mA |
| Supply Voltage | +5 V ±5 % |
| Logic Input Low Voltage | 0.8 V |
It operates from a single +5 V supply with a tolerance of ±5 %.
The DAC provides a 12‑bit resolution.
