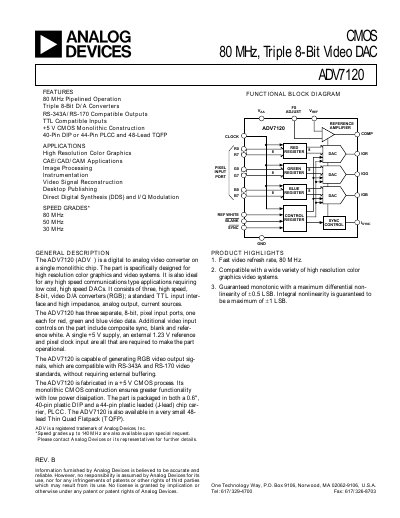

The ADV7120 is a digital-to-analog video converter on a single monolithic chip from Analog Devices. It is specifically designed for high resolution color graphics and video systems. It also ideal for any high speed communications type applications requiring low cost, high speed DACs.
The ADV7120 is a CMOS triple 8‑bit video digital‑to‑analog converter designed for high‑resolution color graphics and video systems. It provides three independent RGB current‑output DACs, TTL‑compatible video inputs, and optional sync and blanking control.
The device operates from a single +5 V supply, offers up to 80 MHz clock rates, and is supplied in 40‑pin DIP, 44‑pin PLCC and 48‑lead TQFP packages. Detailed specifications, timing characteristics, pin functions and recommended operating conditions are provided in this handbook.
| Resolution per DAC | 8 Bits |
|---|---|
| Integral Nonlinearity (INL) | ±1 LSB max |
| Differential Nonlinearity (DNL) | ±0.5 LSB max |
| Maximum Clock Rate | 80 MHz |
| Supply Voltage (VAA) | 5 V nominal |
| Typical Gray Scale Current (IOG) | 26.67 mA |
| Reference Voltage (VREF) | 1.235 V typical |
| Package Options | 40‑pin DIP, 44‑pin PLCC, 48‑lead TQFP |
The device operates from a single +5 V analog power supply (VAA).
The highest supported clock rate is 80 MHz for the 80 MHz version.
Each of the three DACs provides 8‑bit resolution.
It is offered in a 40‑pin DIP, a 44‑pin PLCC, and a 48‑lead TQFP package.
