The CBTLV3384 is a ten bit high-speed bus switch with low on-state resistance of the switch allowing connections to be made with minimal propagation delay. The device is organized as dual 5-bit bus switches with separate output-enable (OE) inputs, to allow use as two 5-bit bus switches or one 10-bit bus switch. When OE is low, the associated 5-bit bus switch is on and A port is connected to B port. When OE is high, the switch is open, and a high- impedance state exists between the two ports. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

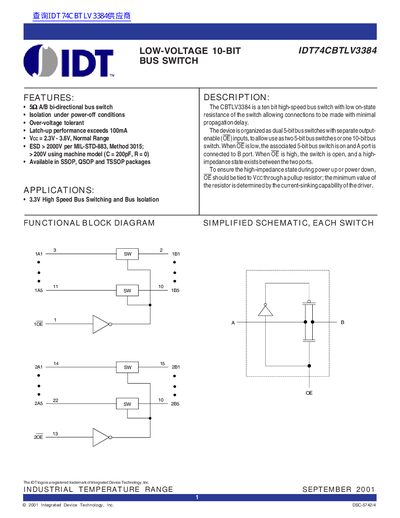

The IDT 74CBTLV3384 is a low‑voltage, 10‑bit bi‑directional bus switch designed for high‑speed bus switching and isolation. It features dual 5‑bit switches that can be used as two separate 5‑bit switches or combined into a single 10‑bit switch, with over‑voltage tolerant propagation delay and latch‑up performance exceeding 100 mA.
The datasheet details pin configurations, absolute maximum ratings, operating characteristics, DC electrical parameters, switching timings, test circuits, and ordering information. It also lists the available SSOP, QSOP, and TSSOP packages and specifies an industrial temperature range of –40 °C to +85 °C.
| Supply Voltage Range (Absolute Max) | -0.5 to 4.6 V |
|---|---|
| Operating Supply Voltage (VCC) | 2.3 V – 3.6 V |
| Propagation Delay | 0.15 – 0.25 ns |
| Available Packages | SSOP, QSOP, TSSOP |
The absolute maximum supply voltage range is –0.5 V to 4.6 V.
The propagation delay is between 0.15 ns and 0.25 ns.
The device is available in SSOP, QSOP, and TSSOP packages.
