The AD5063 is a 16-bit single-channel precision D/A converter from Analog Devices. It has a 1 LSB INL and single power supply, and can operate in the 2.7V-5.5V voltage range. The AD5063 is packaged in a 10-lead MSOP, and consumes very little power. It also has a fast settling time and low noise. The AD5063 is suitable for industrial control, data acquisition, and portable instruments.
The AD5063 is a low‑power, single 16‑bit nanoDAC with a voltage‑output architecture. It operates from a 2.7 V to 5.5 V supply and offers a relative accuracy of ±1 LSB, guaranteed monotonic behavior, and three selectable power‑down modes. The device features a high‑speed 3‑wire serial interface compatible with SPI, QSPI, MICROWIRE, and DSP standards, supporting clock rates up to 30 MHz.

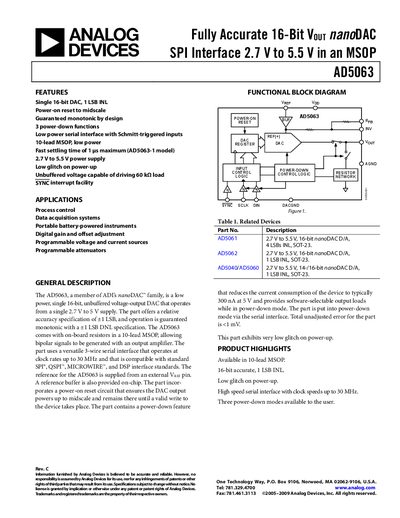

The datasheet includes detailed specifications, timing diagrams, absolute maximum ratings, pin configuration, and typical performance graphs. It also lists related devices, revision history, and application notes such as process control, data acquisition, and portable instruments.
| Resolution | 16 Bits |
|---|---|
| Relative Accuracy (INL) | +1 LSB |
| Maximum Serial Clock Frequency | 30 MHz |
| Output Noise Spectral Density | 64 nV/√Hz |
| Typical Power‑down Current | 300 nA at 5 V |
The serial interface can run at clock speeds up to 30 MHz.
The device offers three selectable power‑down functions.
The AD5063 provides a 16‑bit resolution.
