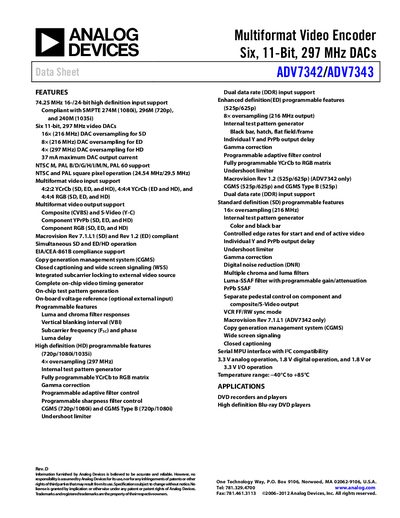

This data sheet provides detailed information on the features and specifications of ADV7342/ADV7343.
The ADV7342 and ADV7343 are high‑speed, 6‑channel, 11‑bit video DACs that encode composite, S‑Video, component YPrPb and RGB signals for standard‑definition (SD), enhanced‑definition (ED) and high‑definition (HD) video formats. The devices include an on‑chip video timing generator, test‑pattern generator, programmable filters, and support for both 3.3 V and 1.8 V digital interfaces.
Typical applications include DVD recorders, Blu‑ray players and other multimedia equipment that require multiformat video output. The datasheet provides detailed electrical specifications, pin descriptions, register maps and timing diagrams to aid hardware designers.
| Supply Voltage (Vop) typical | 1.8 V |
|---|---|
| Maximum DAC output current | 37 mA |
| Input clock frequency (SD/ED) | 27 MHz |
| Input clock frequency (HD) | 74.25 MHz |
| Operating temperature range | ‑40 °C to +85 °C |
| Internal voltage reference (typical) | 1.248 V |
The devices support NTSC, PAL, SMPTE 274M (1080i), SMPTE 296M (720p), and SMPTE 240M (1035i) across SD, ED and HD formats.
The maximum DAC output current is 37 mA.
Supply voltages range from 1.71 V to 1.89 V for Vop and from 1.71 V to 3.63 V for Vop_to.
It operates from –40 °C up to +85 °C.
