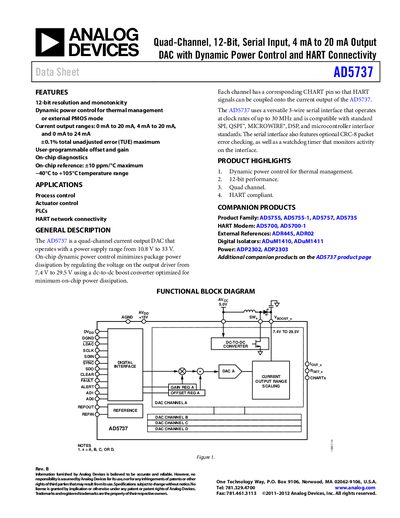

This data sheet provides detailed information about the AD5737, including 12-bit resolution and monotonicity, dynamic power control, current output ranges, user-programmable offset and gain, on-chip diagnostics, on-chip reference, -40°C to +105°C temperature range.
The AD5737 is a quad‑channel, 12‑bit current‑output DAC that operates from a 10.8 V to 33 V supply. It features dynamic power control for thermal management, selectable output current ranges (0 mA‑24 mA), and HART‑compatible CHART pins for process‑control networking.
The device uses a 3‑wire serial interface compatible with SPI, QSPI, Microwire, and other standards, offering optional CRC‑8 error checking and a watchdog timer. Detailed specifications cover accuracy, timing, power consumption, and DC‑DC conversion, making the AD5737 suitable for actuator control, PLCs, and HART network applications.
| Resolution | 12 bits |
|---|---|
| Output Current Range | 0 mA to 24 mA (selectable 0‑20 mA, 4‑20 mA) |
| Total Unadjusted Error (TUE) | ±0.1 % FSR |
| Operating Temperature Range | ‑40 °C to +105 °C |
| Supply Voltage Range | 10.8 V to 33 V |
| Power Dissipation | 155 mW (AVpp=15 V, DVpp=5 V, converter enabled) |
| Reference Input Voltage | 5 V (typical) |
The AD5737 can output currents from 0 mA to 24 mA, with selectable ranges of 0‑20 mA, 4‑20 mA, or 0‑24 mA.
It provides a 12‑bit resolution.
The device operates from a supply voltage of 10.8 V to 33 V.
Yes, each channel includes a CHART pin that allows HART signals to be coupled onto the current output.
