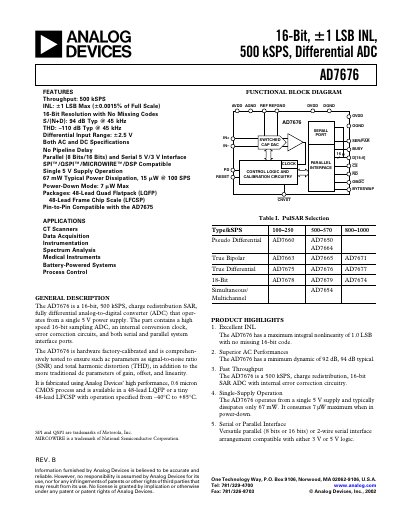

AD7676 is a 16-bit, 500kSPS, differential ADC with ±1 LSB INL.
The AD7676 is a 16‑bit, charge‑redistribution SAR analog‑to‑digital converter that operates from a single 5 V supply. It provides up to 500 kSPS throughput, 16‑bit resolution with no missing codes, and low power consumption (67 mW typical, 15 µW in power‑down). The device supports both parallel (8‑ or 16‑bit) and 2‑wire serial interfaces, compatible with 3 V or 5 V logic levels.
The datasheet includes detailed specifications, timing diagrams, pin‑function tables, definition of performance metrics, typical performance graphs, and ordering information for the LQFP and LFCSP packages. It also outlines absolute maximum ratings and recommended ESD precautions.
| Resolution | 16 bits |
|---|---|
| Maximum Throughput | 500 kSPS |
| Power Dissipation (typical) | 67 mW |
| Supply Voltage | Single 5 V (AVDD = DVDD = 5 V) |
| Integral Nonlinearity (INL) | 1 LSB max |
| Total Harmonic Distortion (THD) | –110 dB typ @ 45 kHz |
| Package Options | 48‑lead LQFP or 48‑lead LFCSP |
The AD7676 can sample up to 500 kSPS.
It operates from a single 5 V supply (AVDD = DVDD = 5 V).
Typical power dissipation is 67 mW at 500 kSPS.
It is offered in a 48‑lead LQFP and a 48‑lead LFCSP package.
