The AD10465 is a dual-channel, 14-bit, 65 MSPS analog-to-digital converter with analog input signal conditioning. It utilizes innovative high-density circuit design and laser-trimmed thin film resistor networks to achieve exceptional matching and performance, while maintaining excellent isolation and providing significant board area savings.
The AD10465 from Analog Devices is a full‑channel ADC solution that includes on‑module signal conditioning for improved dynamic performance and matched channel‑to‑channel characteristics. It integrates two AD6644 ADCs, low‑distortion amplifiers and differential drivers, and operates from separate analog and digital supplies.

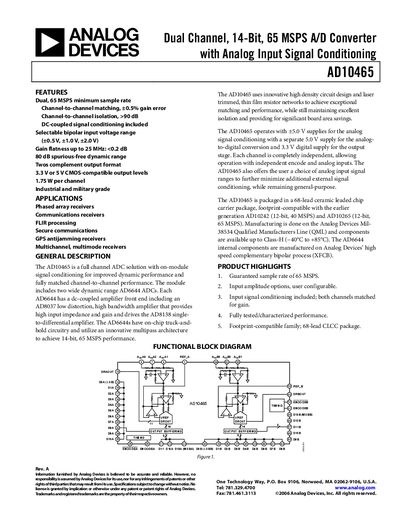

This datasheet provides detailed specifications, pin descriptions, absolute maximum ratings, test circuits, mechanical dimensions, and ordering information for the 68‑lead ceramic leaded chip carrier version of the device.
