AD10200 is a dual channel, 12-bit, 105 MSPS IF sampling A/D converter with analog input signal conditioning.
The AD10200 is a full‑channel ADC solution that includes on‑module signal conditioning for improved dynamic performance and matched channel‑to‑channel characteristics. It features dual 12‑bit converters, transformer‑coupled front‑ends optimized for direct‑IF sampling, and provides 105 MSPS minimum sample rate with >80 dB channel isolation.

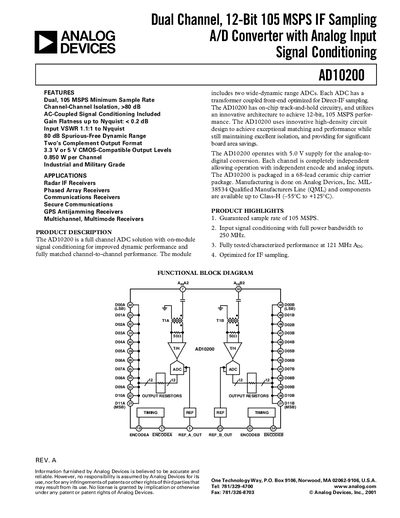

The datasheet details electrical specifications, pin configuration, absolute maximum ratings, typical performance graphs, and ordering information for the 68‑lead ceramic package. It is intended for radar IF receivers, phased‑array and secure communications, GPS antijamming, and other multichannel, multimode receiver applications.
| Resolution | 12 bits |
|---|---|
| Maximum Sample Rate | 105 MSPS |
| Input VSWR | 1.1:1 to Nyquist |
| Power Dissipation per Channel | 0.850 W |
| Operating Temperature Range | -55°C to +125°C |
| Output Voltage Levels | 3.3 V or 5 V CMOS‑compatible |
The input VSWR is guaranteed from 1.1:1 up to the Nyquist frequency.
It is rated for operation from –55 °C to +125 °C.
