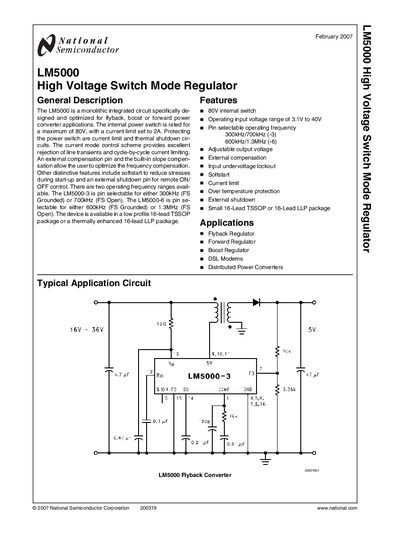

The LM5000 is a monolithic integrated circuit specifically designed and optimized for flyback, boost or forward power converter applications. The internal power switch is rated for a maximum of 80V, with a current limit set to 2A. Protecting the power switch are current limit and thermal shutdown circuits. The current mode control scheme provides excellent rejection of line transients and cycle-by-cycle current limiting. An external compensation pin and the built-in slope compensation allow the user to optimize the frequency compensation. Other distinctive features include softstart to reduce stresses during start-up and an external shutdown pin for remote ON/OFF control. There are two operating frequency ranges available. The LM5000-3 is pin selectable for either 300kHz (FS Grounded) or 700kHz (FS Open). The LM5000-6 is pin selectable for either 600kHz (FS Grounded) or 1.3MHz (FS Open). The device is available in a low profile 16-lead TSSOP package or a thermally enhanced 16-lead LLP package.
The LM5000 is a monolithic high‑voltage switch‑mode regulator designed for flyback, boost or forward converter applications. It offers an internal switch rated for up to 80 V, a selectable operating frequency range, soft‑start, and external shutdown control.
The document provides a typical application circuit, detailed pin descriptions, absolute maximum ratings, electrical characteristics, performance curves, and ordering information for the TSSOP‑16 and LLP‑16 packages.
| Internal switch voltage rating | 80 V |
|---|---|
| Current limit | 2 A |
| Package types | 16‑lead TSSOP or 16‑lead LLP |
The device is offered in a low‑profile 16‑lead TSSOP package and a thermally enhanced 16‑lead LLP package.
