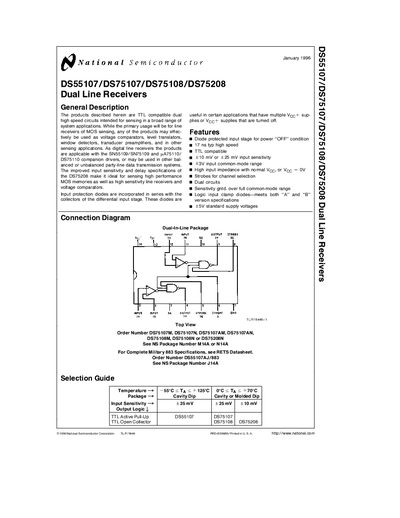

DS55107, DS75107, DS75108 and DS75208 Dual Line Receivers
The DS55107, DS75107, DS75108 and DS75208 are TTL‑compatible dual high‑speed line receivers intended for a wide range of sensing and data‑bus applications. The document describes their electrical characteristics, package options, and recommended wiring.
Typical applications include balanced‑line transmission systems, party‑line data buses and unbalanced single‑line links. The manual also covers precautions, termination requirements and physical dimensions for the various package styles.
| Input Sensitivity | +25 mV |
|---|---|
| Output Logic Type | TTL Active Pull‑Up |
| Common‑mode Input Range | +5 V to +8 V |
The devices have an input sensitivity of about +25 mV.
