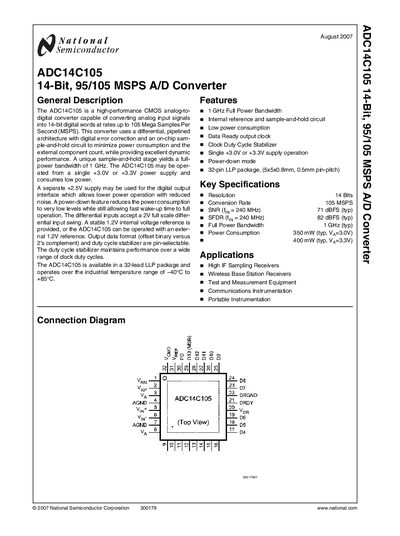

The ADC14C105 is a 14-bit, 95/105 MSPS A/D converter
The ADC14C105 is a high‑performance CMOS analog‑to‑digital converter that delivers 14‑bit resolution at up to 105 MSPS. It uses a differential, pipelined architecture with digital error correction and an on‑chip sample‑and‑hold circuit, providing a 1 GHz full‑power bandwidth while consuming low power.
The device operates from a single +3.0 V or +3.3 V supply, with an optional +2.5 V digital output supply. It offers selectable output data formats, a duty‑cycle stabilizer, and a power‑down mode for reduced consumption. Pin‑outs, electrical characteristics, and mechanical dimensions are detailed for designers.
