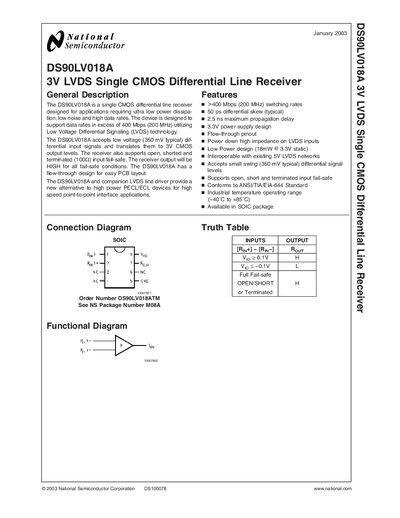

The DS90LV018A is a single CMOS differential line receiver from Linear Technology, designed for applications requiring ultra low power dissipation, low noise and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The DS90LV018A accepts low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels. The receiver also supports open, shorted and terminated (100Ω) input fail-safe. The receiver output will be HIGH for all fail-safe conditions. The DS90LV018A has a flow-through design for easy PCB layout. The DS90LV018A and companion LVDS line driver provide a new alternative to high power PECL/ECL devices for high speed point-to-point interface applications.
The DS90LV018A is a single CMOS differential line receiver designed for ultra‑low power dissipation, low noise and data rates above 400 Mbps (200 MHz). It accepts low‑voltage (≈350 mV) differential inputs and converts them to 3 V CMOS outputs, with built‑in fail‑safe for open, shorted or terminated inputs.
The document provides electrical characteristics, absolute maximum ratings, typical performance curves, application guidelines, PCB layout recommendations, and ordering information for the device, including power‑decoupling and termination advice for reliable LVDS operation.
| Supply Voltage Range | +0.3 V to +4 V |
|---|---|
| Power Consumption (static) | 18 mW @ 3.3 V |
The device operates from –0.3 V to +4 V supply voltage.
