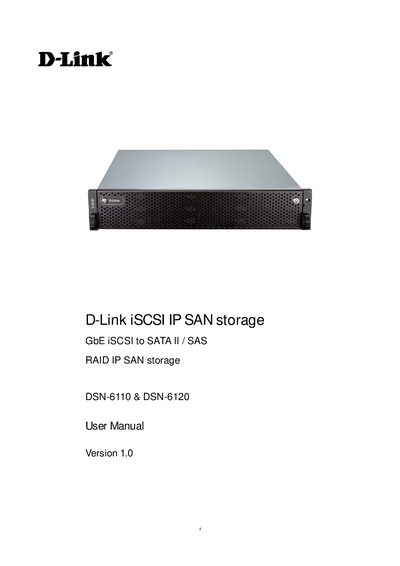

This document is the introduction of D-Link DSN-61x0 IP SAN storage, aiming to help users easily understand the operations of the disk array system. The document provides a model comparison of the DSN-6100 series and describes the features and functions of DSN-6120 and DSN-6110.
The D-Link DSN-6000 series provides high‑availability IP SAN storage with dual‑controller options, RAID 6 protection and snapshot capabilities. This manual guides users through hardware setup, network configuration, RAID creation, and advanced management features.
Key sections include installation steps, quick‑setup procedures, detailed configuration of iSCSI, RAID groups, and troubleshooting tips. The document also describes maintenance tasks such as firmware upgrades, factory reset, and battery backup handling.
| iSCSI ports (DSN-6120) | 8 x GbE |
|---|---|
| iSCSI ports (DSN-6110) | 4 x GbE |
| Drive bays | 12 x SAS or SATA II |
| Power supplies | 2 x 500W PSU |
| Dimensions (W x D x H) | 449.8 x 500.6 x 88.0 mm |
| Supported RAID levels | 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD |
| Maximum snapshots per volume | 32 |
The DSN-6120 provides eight Gigabit Ethernet iSCSI ports.
Supported RAID levels include 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60 and JBOD.
The unit measures 449.8 mm × 500.6 mm × 88.0 mm (W × D × H).
Up to 32 snapshots can be kept for one logical volume.
