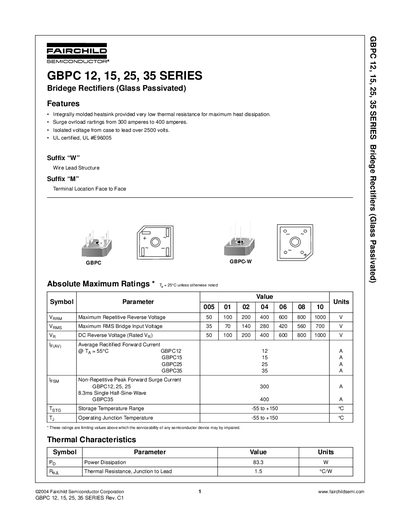

This document is the GBPC 12, 15, 25, 35 SERIES product datasheet, which introduces the features and characteristics of the product, including integrated heatsink, surge overload ratings, insulation voltage, UL certification, etc.
The GBPC 12, 15, 25, 35 SERIES are glass‑passivated bridge rectifiers with an integrally molded heatsink for low thermal resistance and UL certification (UL #E96005). They offer surge overload ratings from 300 A to 400 A and isolated voltage over 2500 V.
The datasheet lists absolute maximum ratings, thermal characteristics, and detailed electrical parameters such as forward voltage drop, reverse current, and capacitance for each rating level. Typical performance curves illustrate forward current derating and reverse voltage behavior across temperature ranges.
| Maximum Repetitive Reverse Voltage | 50‑1000 V (depending on rating) |
|---|---|
| Maximum RMS Bridge Input Voltage | 35‑700 V (depending on rating) |
| Power Dissipation | 83.3 W |
| Thermal Resistance, Junction to Lead | 15 °C/W |
| Forward Voltage Drop (per bridge, 6 A) | ≈6.0 V (GBPC12) – 7.5 V (GBPC15) – 12.5 V (GBPC25) – 17.5 V (GBPC35) |
The device can be stored and operated from –55 °C to +150 °C.
Yes, the series is UL certified under UL #E96005.
