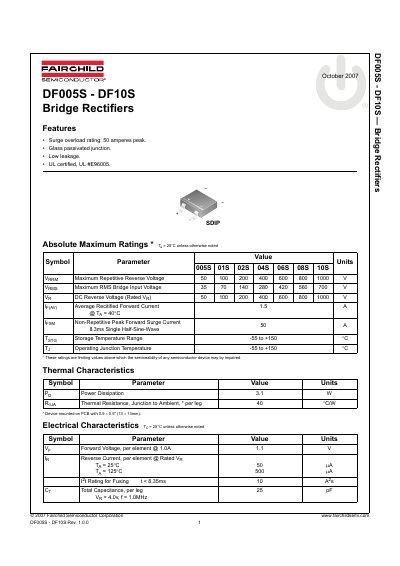

DF005S - DF10S is a Bridge Rectifiers produced by Fairchild Semiconductor Corporation, with a surge overload rating of 50 amperes peak, glass passivated junction, low leakage, UL certified, UL #E96005.
The DF005S‑DF10S series are glass‑passivated bridge rectifiers offered by Fairchild Semiconductor. The datasheet lists key features such as a 50 A peak surge overload rating, low leakage, and UL certification.
Key specifications include reverse voltage ratings from 50 V to 1000 V, average forward current up to 1.5 A, power dissipation of 3.1 W, and thermal resistance of 40 °C/W per leg. The document also contains typical performance curves, storage temperature limits, and product status definitions.
| Maximum Repetitive Reverse Voltage (VRRM) | 50‑1000 V |
|---|---|
| Maximum RMS Bridge Input Voltage (VRMS) | 35‑700 V |
| Average Forward Current (IF(AV)) | 1.5 A @ 40 °C |
| Surge Overload Rating | 50 A peak |
| Power Dissipation (PD) | 3.1 W |
| Thermal Resistance (RθJA) | 40 °C/W per leg |
| Forward Voltage (VF) | 1.1 V @ 1 A |
| Storage Temperature Range | -55 °C to +150 °C |
The surge overload rating is 50 A peak.
They can be stored from –55 °C to +150 °C.
Yes, they are UL certified (UL #E96005).
