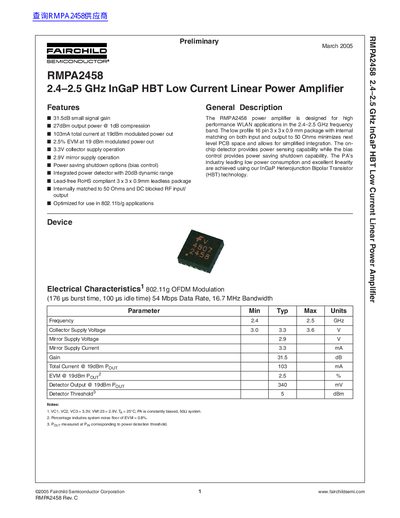

RMP2458 2.4–2.5 GHz InGaP HBT Low Current Linear Power Amplifier is a low power, high linearity RF power amplifier, it adopts a 3 x 3 x 0.9mm leadless package with an integrated power detector with 20dB dynamic range, and is optimized for use in 802.11b/g applications.
The RMPA2458 is a 2.4‑2.5 GHz InGaP HBT low‑current linear power amplifier designed for WLAN 802.11b/g applications. It offers 31.5‑32 dB small‑signal gain, up to 27 dBm output power, and features integrated power detection, bias control, and power‑saving shutdown.
The document provides electrical characteristics, absolute ratings, performance graphs, an evaluation‑board schematic, component list, and recommended turn‑on/off sequences for system integration.
| Frequency range | 2.4‑25 GHz |
|---|---|
| Collector supply voltage | 3.0‑3.6 V |
| Mirror supply voltage | 2.9 V |
| Small‑signal gain | 31.5 dB (typ.) |
| Total current @ 19 dBm output | 103 mA |
| Detector output @ 19 dBm | 340 mV |
| P1dB compression point | 27 dBm |
| Turn‑on time | <1.0 µs |
| Spurious (stability) level | 65 dBc |
Connect ground, then the voltage detector pin, apply the three collector supplies (VC1‑VC3) at 3.3 V, apply the bias voltage (VM123) at 2.9 V, and finally apply RF input; currents will appear on the pins as listed.
The typical small‑signal gain is 31.5 dB (32 dB in some test conditions).
The device can deliver up to 27 dBm output power with 1 dB compression.
The collector supply voltage should be between 3.0 V and 3.6 V, and the bias (mirror) supply voltage is 2.9 V.
