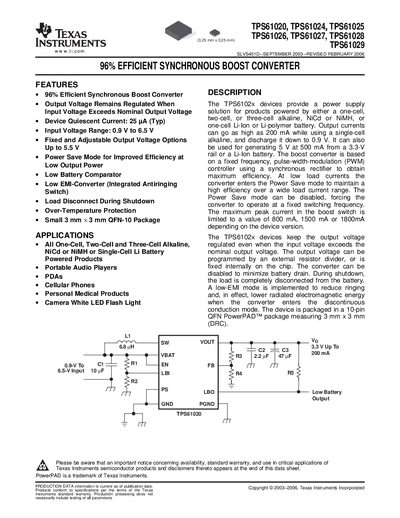

The TPS6102x series is a high efficiency synchronous boost converter with an adjustable output voltage, an input voltage range of 0.9V to 6.5V, and an output current of up to 200mA. It can be used for products powered by a single-cell, two-cell, or three-cell alkaline, nickel cadmium, or nickel metal hydride battery, or it can be used to generate 5V at 500mA from a 3.3V or Li-Ion battery.
The TPS6102x family provides a high‑efficiency boost‑converter solution for battery‑powered products. They operate with an input voltage from 0.9 V to 6.5 V, deliver up to 200 mA output current, and feature a 96% peak efficiency. The devices include power‑save mode, low‑battery comparator, and over‑temperature protection, and can be configured for fixed or adjustable output voltages up to 5.5 V.
Typical applications include portable audio players, PDAs, cellular phones, medical devices, and camera flash LEDs. The converters are offered in a 3 mm × 3 mm QFN‑10 PowerPAD package, suitable for compact board layouts and thermal management.
| Efficiency | 96% |
|---|---|
| Input voltage range | 0.9 V to 6.5 V |
| Maximum output current | 200 mA |
| Package size | 3 mm × 3 mm QFN‑10 |
| Adjustable output voltage range | Up to 5.5 V |
| Power Save mode | Enabled for low‑load efficiency |
| Low‑Battery comparator | Enabled |
| Over‑temperature protection | Enabled |
It is supplied in a 3 mm × 3 mm QFN‑10 PowerPAD package.
The allowed input voltage spans from 0.9 V to 6.5 V.
The converter can provide up to 200 mA of output current.
