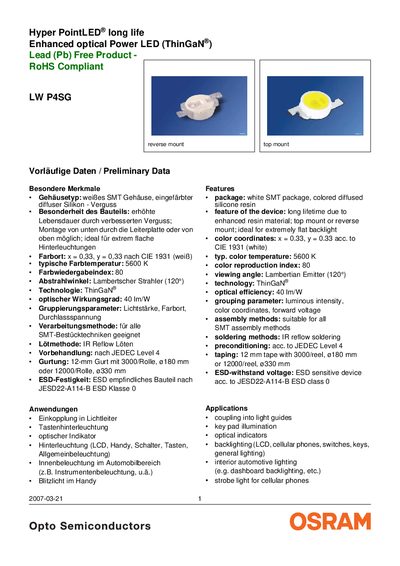

LW P4SG Hyper PointLED® is a long life Enhanced optical Power LED (ThinGaN®) with no lead (Pb) and is RoHS compliant. It can be mounted from the bottom or top, and is ideal for extremely flat backlighting.
The LW P4SG is a ThinGaN® long‑life point LED offered in both top‑mount and reverse‑mount configurations. It is designed for extremely flat backlight applications such as LCD, mobile phones, switches, automotive instrument panels and strobe lights. The device features a white SMT package with a colored diffused silicone resin and complies with RoHS.
Key specifications include a typical color coordinate of x=0.33, y=0.33 (CIE 1931), a color temperature of 5600 K, CRI of 80, a Lambertian viewing angle of 120°, and an optical efficiency of 40 lm/W. Electrical parameters are a typical forward voltage of 3.2 V at 20 mA, a forward current of 20 mA (min) and a surge current capability of 200 mA. The LED operates from –40 °C to +100 °C and is ESD‑sensitive (class 0). This manual is written in German.
| Color coordinates (x, y) | x = 0.33, y = 0.33 |
|---|---|
| Typical color temperature | 5600 K |
| Color rendering index (CRI) | 80 |
| Viewing angle | 120° (Lambertian) |
| Optical efficiency | 40 lm/W |
| Typical forward voltage | 3.2 V |
| Operating temperature range | -40 °C … +100 °C |
The typical forward voltage is 3.2 V at a forward current of 20 mA.
The LED provides an optical efficiency of 40 lm/W.
It can operate from –40 °C up to +100 °C.
