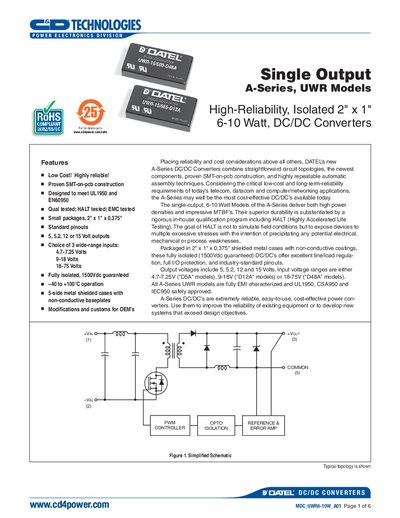

The UWR series from DATEL are single‑output, high‑reliability DC/DC converters offered in 6‑10 W power levels. They are fully isolated (1500 Vdc guaranteed), feature a compact 2" × 1" × 0.375" metal case, and are designed for telecom, datacom and networking applications.
The document includes detailed performance specifications, ordering information, mechanical dimensions, EMI test results, and descriptions of HALT and qualification testing used to ensure long‑term reliability. Custom capabilities and input‑fusing recommendations are also provided for OEM designers.
| Input Voltage Range (D5A) | 4.7‑7.25 V |
|---|---|
| Isolation Voltage | 1500 Vdc (guaranteed) |
| Operating Temperature (ambient, no derating) | -40 °C to +60/65/70 °C (model dependent) |
| Dimensions | 2" × 1" × 0.375" (51 × 25 × 9.5 mm) |
| Weight | 1.3 oz (37 g) |
The converters are guaranteed to have an isolation voltage of 1500 Vdc.
Without derating, the converters operate from –40 °C up to +60 °C, +65 °C or +70 °C depending on the model.
Each converter measures 2 inches by 1 inch by 0.375 inch (51 × 25 × 9.5 mm).
