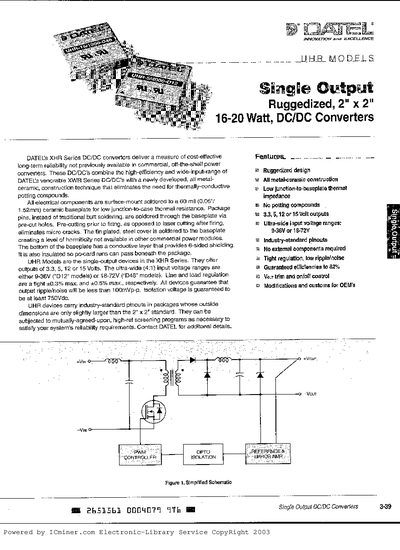

This document provides technical specifications and ordering information for the DATEL UHR Series of single-output DC/DC converters. These ruggedized, 2-inch square modules deliver 16-20 Watts of power with ultra-wide input voltage ranges of either 9-36V or 18-72V. The devices feature an all-metal-ceramic construction that eliminates the need for thermally-conductive potting compounds, ensuring high reliability and low thermal resistance.
| Power Output | 16-20 Watt |
|---|---|
| Input Voltage Range (D12) | 9-36 Volts |
| Input Voltage Range (D48) | 18-72 Volts |
| Output Voltages | 3.3, 5, 12 or 15 Volts |
| Isolation Voltage | 750Vdc minimum |
| Dimensions | 2.06" x 2.06" x 0.45" |
The UHR models offer outputs of 3.3, 5, 12 or 15 Volts.
The ultra-wide input voltage ranges are either 9-36V for D12 models or 18-72V for D48 models.
All devices guarantee that output ripple/noise will be less than 100mVp-p.
The isolation voltage is guaranteed to be at least 750Vdc.
