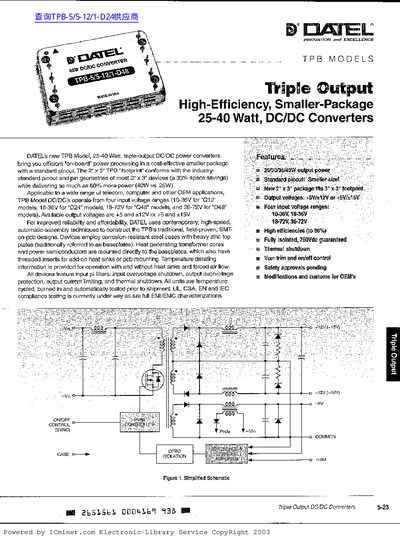

DATEL TPB Series Triple Output DC/DC Converters Datasheet

TPB-5/5-12/1-D24 supplier inquiry

Brand: Datel
Category: Power Management
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 745 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: EDF58E945E1D66BA914A73F73AD8514E
PDF: DATEL TPB Series Triple Output DC/DC Converters Datasheet PDF

About this manual

The DATEL TPB Model is a line of 25-40 Watt, triple-output DC/DC power converters designed for efficient on-board power processing in telecom and computer applications. These devices offer a smaller 2" x 3" footprint compared to standard 3" x 3" units while delivering up to 60% more power than previous models.

What's inside

Performance Specifications
Output Power Considerations
Mechanical Specifications
Temperature Derating Curves
Technical Notes
Filtering and Noise Reduction
Input Fusing

Specifications

Power Rating	25-40 Watt
Output Voltages	+5V/12V or +5V/15V
Input Voltage Ranges	10-36V, 18-36V, 18-72V, 36-72V
Efficiency	Up to 86%
Isolation Voltage	750Vdc
Dimensions	2" x 3" x 0.5"
Operating Temperature	-40 to +105°C

Frequently asked questions

What is the maximum power for Q48 models?

The maximum power for "Q48" models is 30 Watts.

Do these converters require external capacitors?

No, all TPB converters achieve rated ripple and noise specifications without the use of external input/output capacitors.

Download PDF (745 KB)
