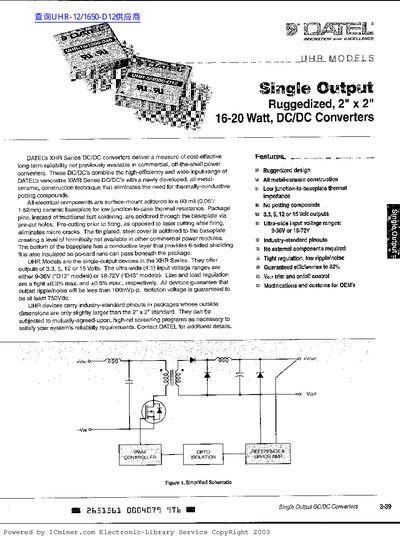

UHR-12/1650-D12 Supplier
The UHR single‑output converters are ruggedized 2 × 2 in modules that provide 16‑20 W power conversion with selectable output voltages of 3.3 V, 5 V, 12 V or 15 V. They feature an all‑metal‑ceramic construction, low junction‑to‑case thermal resistance and industry‑standard pinouts.
The document includes performance specifications, ordering information, mechanical dimensions, filtering recommendations, input fusing guidance, on/off control, synchronization options and output trimming procedures. It is intended for designers and system integrators who need a compact, high‑efficiency DC‑DC solution.
| Output Voltage Options | 3.3 V, 5 V, 12 V, 15 V |
|---|---|
| Input Voltage Range | 9‑36 V (D12 models) or 18‑72 V (D48 models) |
| Isolation Voltage | ≥ 750 Vdc |
The converters guarantee an isolation voltage of at least 750 Vdc.
