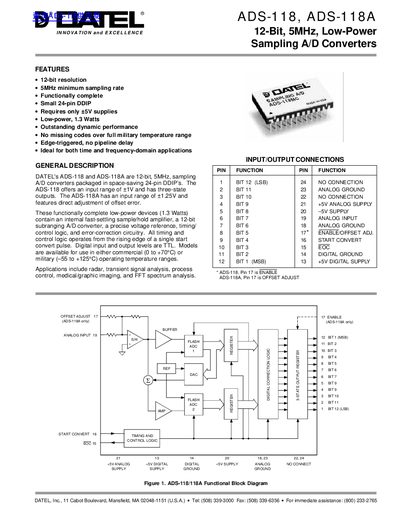

The ADS-118/118A is a 12-bit, 5MHz sampling A/D converter packaged in a space-saving 24-pin DDIP. It is ideal for both time and frequency-domain applications.
The DATEL ADS-118 and ADS-118A are functionally complete, low-power sampling A/D converters packaged in a space-saving 24-pin DDIP. The ADS-118 features an input range of ±1V with three-state outputs, while the ADS-118A offers an extended input range of ±1.25V and includes direct adjustment for offset error. Both models operate from ±5V supplies and consume approximately 1.3 Watts.
| Resolution | 12-bit |
|---|---|
| Sampling Rate | 5MHz minimum |
| Power Dissipation | 1.3 Watts |
| Package Type | 24-pin DDIP |
| Supply Voltage | ±5V |
| Input Range (ADS-118) | ±1V |
| Input Range (ADS-118A) | ±1.25V |
Commercial models operate in a range from 0 to +70°C.
No, the ADS-118 achieves its specified accuracies without external calibration.
These devices are low-power, consuming 1.3 Watts.
